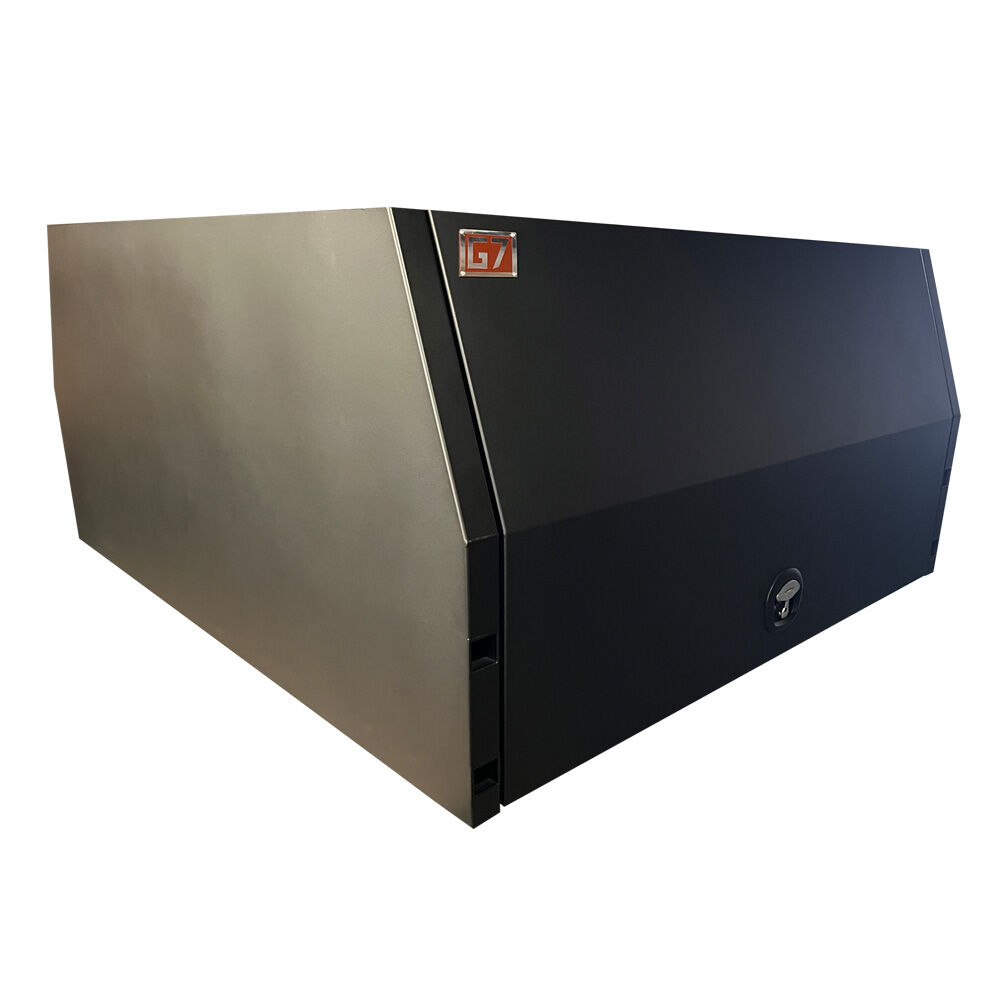

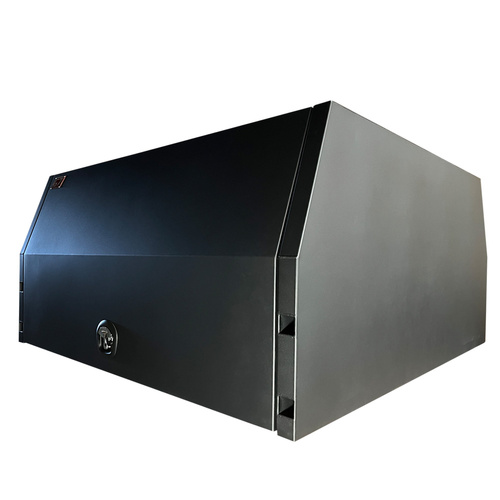

Premium Aluminium Ute Canopy

Premium Aluminum Lift Off Canopy

Black Powder Coat^*

Available dimensions:

1200L x 1820W x 860H

1400L x 1820W x 860H

1650L x 1820W x 860H

1800L x 1820W x 860H

Compatible with out Premium Ute Tray Range



Details:

2.5mm Marine Grade Aluminium Sheet (5052)

60x45mm Aluminium extrusion - compatible with channel nut fixings (Floor, walls & ceiling)

2 Door Access

Flush floor (no drop down)

Fully Seam Welded

Roof and Floor - Single sheet (No joins)

2 x Gas Struts for each Door

Weather resistant Rubber Seals

'Whale Tail' Folding Locks - key lockable with additional padlock provision

Full Length Piano Hinge

Legs not included - see below link

Jack off ready (View Jack Off Legs)

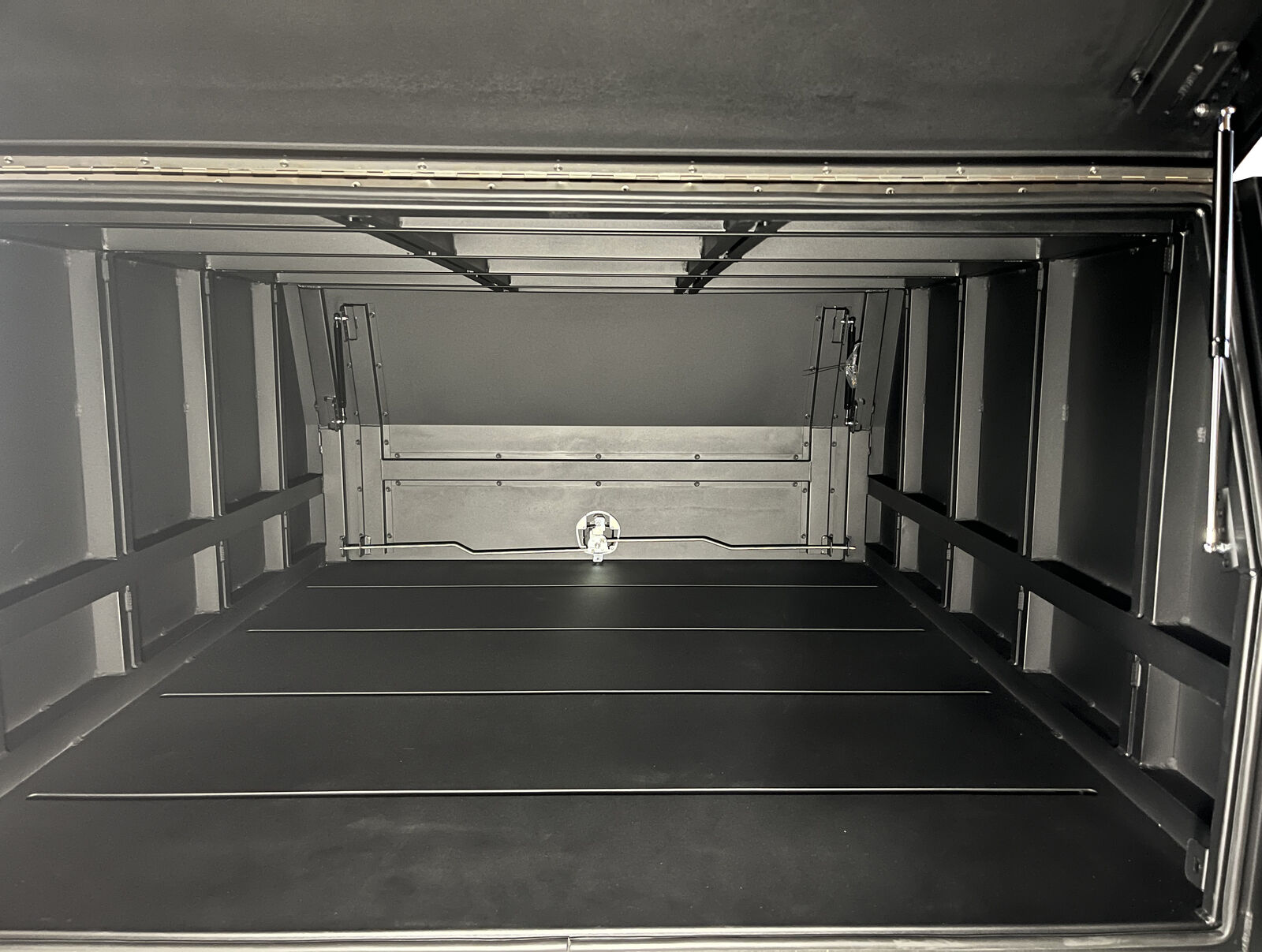

In Built Floor:

Our premium canopies include a Structural Sub-frame base with aluminium sheeting welded to the sub-frame to create a strong, level internal floor. In addition to being much stronger than a simple aluminium sheet floor, our design significantly reduces any distortion or bowing that is common amongst two piece welded floors. The floor does not drop down behind the door, therefore accessories like fridges and drawers can be mounted directly to the floor and open freely once the door is opened.

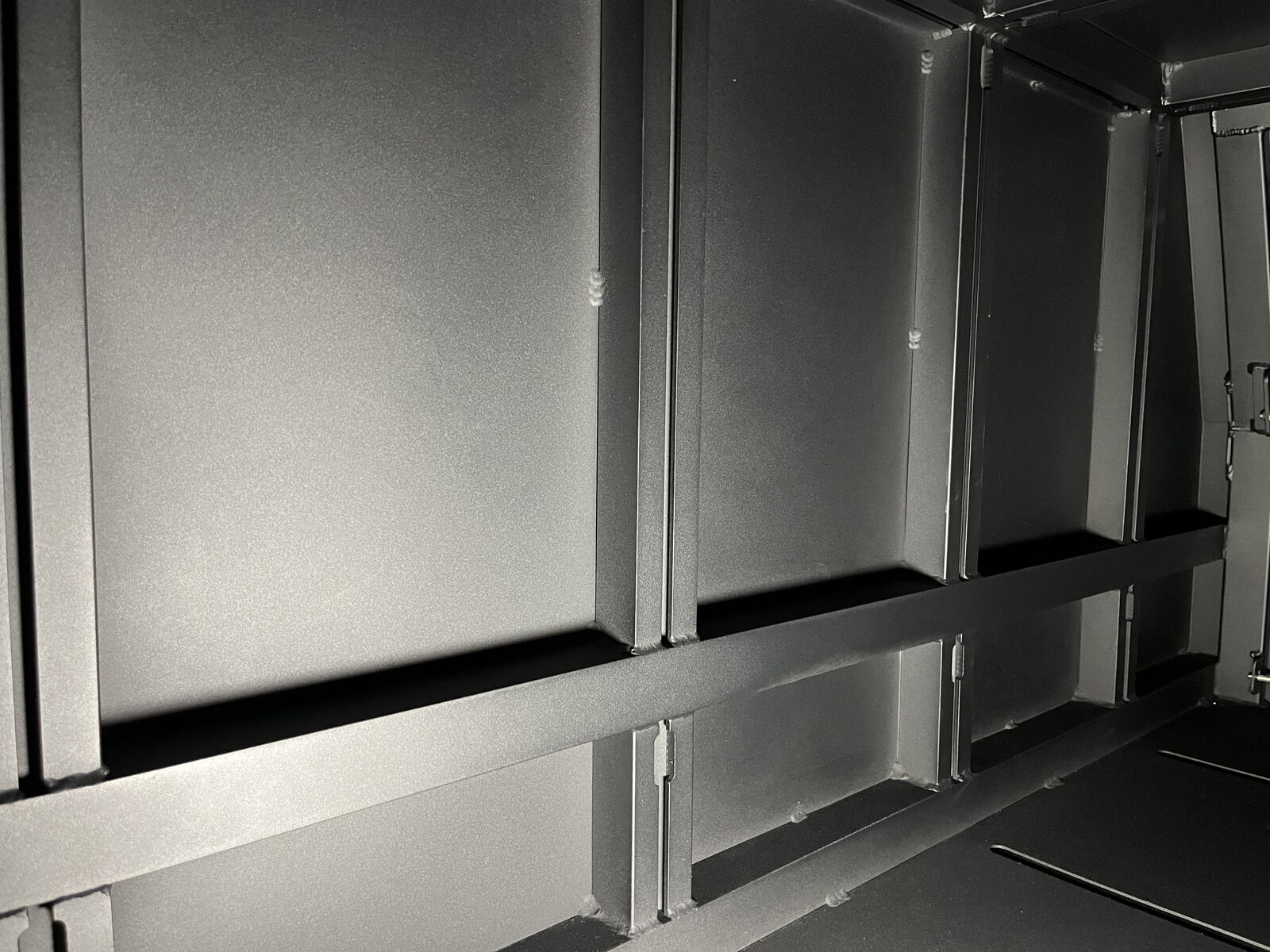

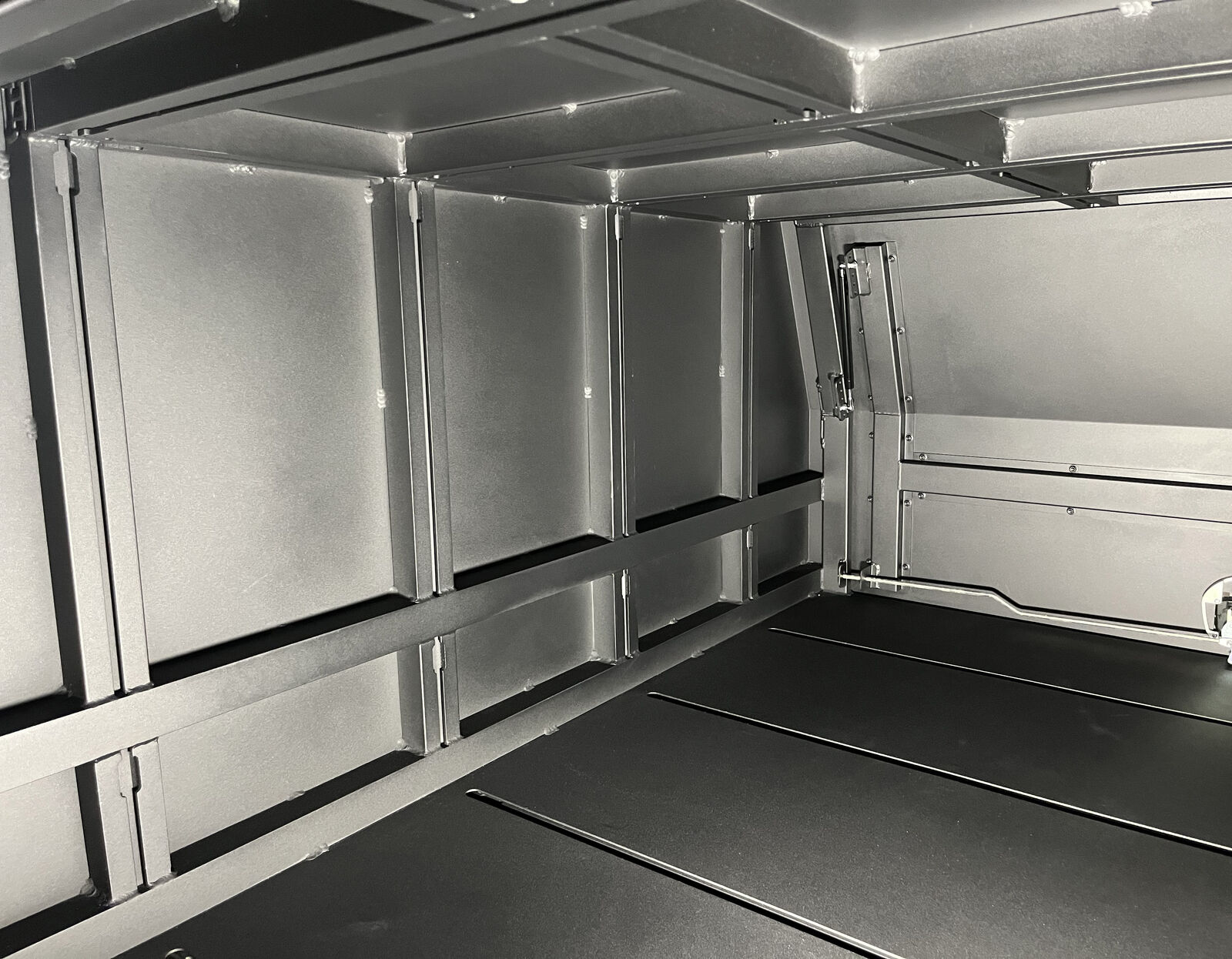

Reinforced Roof and walls:

The roof and wall frames are constructed with 60x45mm aluminium extrusion for strength. The extrusion includes a channel for mounting your accessories without the need to drill through the sheets.

Ladder Racks:

Available as an optional extra



^Powder Coat finish is lightly textured and low sheen

*N.B. Some minor blemishes may be present on the finished surface.

IF YOUR UTE TRAY HAS RAISED COAMING ALONG ITS EDGES, THIS CANOPY MAY NOT BE SUITABLE. CHECK OUR STANDARD RANGE OF CANOPIES FOR AN ALTERNATIVE OPTION WITH A 50MM RAISED SECTION UNDER THE DOOR.
